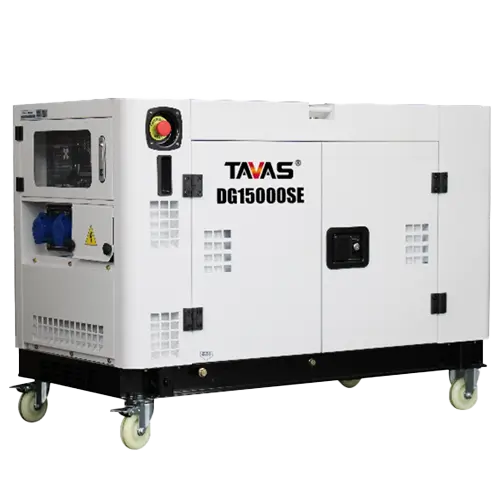

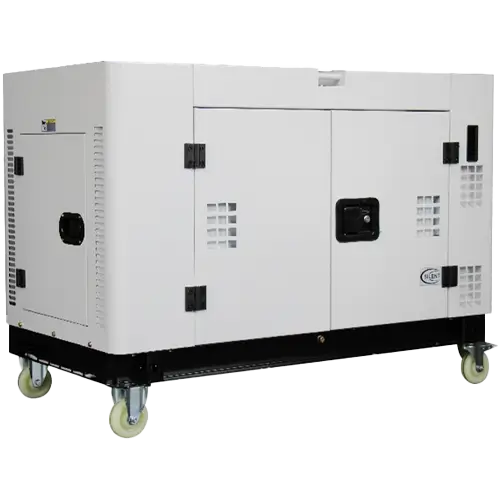

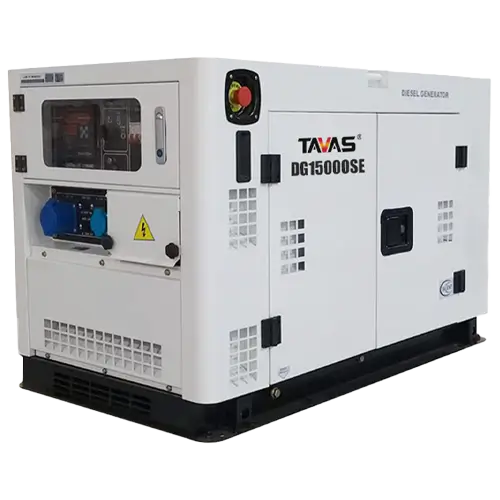

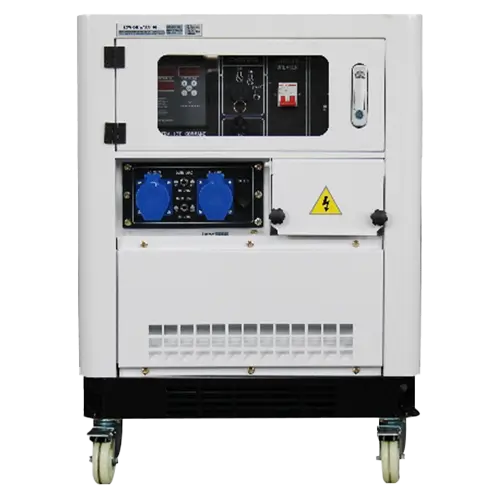

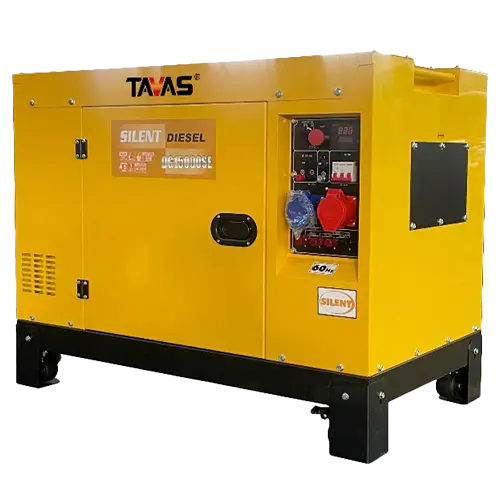

Reliable, fuel-efficient, and quiet—TAVAS Air-Cooled Silenced Diesel Generators deliver 10KW to 16KW of power for residential and industrial needs.
Models:
DG13000SE | DG15000SE | DG22000SE
| Model型号 | DG13000SE | DG15000SE | DG22000SE | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Max Output最大输出(kW) | 10.5 | 11.5 | 11.5 | 12.5 | 15.5 | 16.5 | |||
| Rated Output额定输出(kW) | 10.0 | 11.0 | 11.0 | 12.0 | 15.0 | 16.0 | |||
| Rated AC Voltage额定电压(V) | 110/120,220,230,240,120/240,220/380,230/400,240/415 | ||||||||
| Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | |||
| Engine Speed转速(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |||
| Power Factor功率因数 | 1/0.8 | ||||||||
| DC Output直流输出(V/A) | 12V/8.3A | ||||||||
| Phase相数 | Single Phase or Three Phase单相或三相 | ||||||||
| Alternator Type电机形式 | Brush Self Excited Constant Voltage(With AVR)自励磁 | ||||||||
| Starting System启动系统 | Electric电启动 | ||||||||
| Noise Level (dB at 7m)7米处噪音 | 71 dB | 73 dB | 75 dB | ||||||
| Fuel Tank Capacity燃油箱容量(L) | 25 | 25 | 25 | ||||||
| Continuous Work持续工作小时(hr) | 9 | 8.5 | 6.5 | 6.5 | |||||
| Engine Model型号 | 2V88 | 2V92 | 2V95 | ||||||
| Engine Type动力形式 | 2-Cylinder,Vertical,4-Stroke Air-Cooled Diesel Engine双缸，直立，四冲程，风冷柴油机 | ||||||||
| Displacement排量(cc) | 912 | 997 | 1247 | ||||||
| Bore×Stroke缸径×行程(mm) | 88×75 | 92×75 | 95×88 | ||||||
| Fuel Type燃油 | 0#or-10#Light Diesel Oil O#或者-10#清洁柴油 | ||||||||
| Lubrication Oil Volume润滑油容量(L) | 4.0 | ||||||||
| Combustion System燃烧系统 | Direct Injection直喷式 | ||||||||
| Standard Features标准配置 | Voltmeter,AC Output Socket,AC Circuit Breaker,Oil Alert电压表，交流插座，交流断路器，机油报警 | ||||||||
| Optional Features选配 | Four Sides Wheels,Digital Meter,ATS,Remote Control万向轮，数控表，ATS,遥控启动 | ||||||||
| Dimension包装尺寸(LxWxH)(mm) | A:1300×700×880 B:1115×675×920 | ||||||||
| Gross Weight毛重(kg) | 257 | 267 | 297 | ||||||
